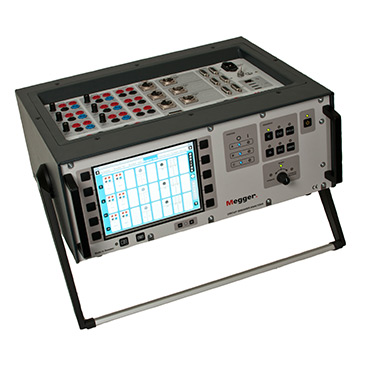

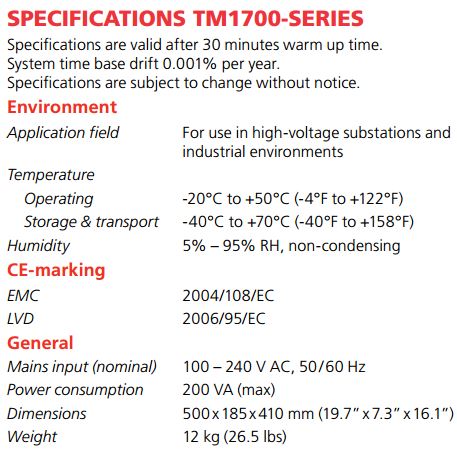

TM1700 Circuit breaker analyser system
Provides reliable and accurate test results in noisy high voltage substations
Five standard models. Full stand-alone functionality or data acquisition models without user interface.
Fast and safer with DualGroundtesting, both sides of breaker grounded
On-screen assistance with connection diagrams and test template Wizard
All models can be controlled via computer
The TM1700 series circuit breaker analysers utilizes some of the ground breaking technology from the top of the line version TM1800. There are four models starting from PC-remote controlled to fully stand-alone. All models can be controlled from a computer using the well proven data management and analysing software CABA Win.
The robust design offers powerful technology that assists the user to achieve efficient and reliable circuit breaker testing. All inputs and outputs on the instrument are designed to withstand the challenging environment in high-voltage substations and industrial environments. Galvanically isolated inputs and outputs makes it possible to perform all relevant measurements in one test, eliminating the need for new setup and re-connections.
The patented DualGroundmethod makes the testing safe and
time saving by keeping the circuit breaker grounded on both sides throughout the test.
The timing measurement inputs are using a patented Active Interference Suppression algorithm to ensure correct timing and accurate PIR (Pre-Insertion Resistor) values even at high capacitively coupled interference currents. The adaptive and easy-to-use software allow the user to perform the test by simply turning the test switch without the need for settings. The operator is only one click away from advanced help functions such as connection diagrams. The 8color touch screen, with on-screen keyboard, allows the user to efficiently operate this high-level interface.
