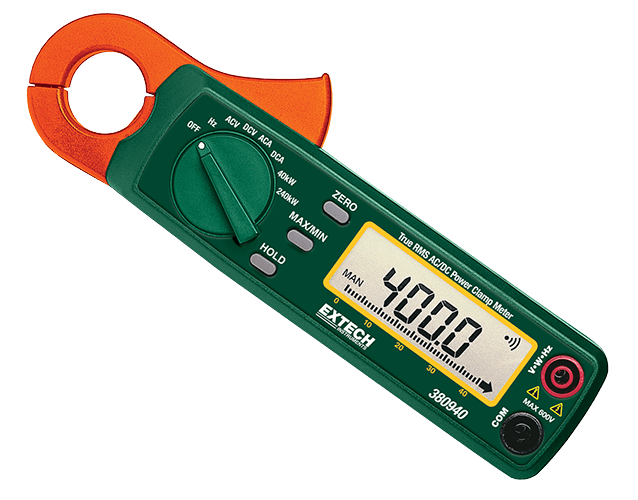

Extech 380940 400A True RMS AC/DC Watt Clamp-on
The compact Extech 380940 is a 400 Amp mini True RMS AC/DC power clamp meter with a small diameter jaw designed to reach in small areas while providing power calculations up to 240kW. With the added convenience of instant watt readings, a feature normally reserved for full-size meters, this mini power clamp is useful for essential troubleshooting tasks in plant maintenance, electrical, HVAC, and telecom work, as well as residential electrical repairs, energy audits, fleet maintenance, marine, and motorcycle repair. Complete with test leads, 2 AA batteries, and carrying case.
| Specifications | Range | Resolution | Accuracy %rdg+digits) | Input Signal Range |
|---|---|---|---|---|
| AC Power | 40kW | 10W | 1.5% + 3d)@50/60Hz | 0-250V, 0-400A, PF 0-1 |
| 240kW | 100W | 1.5% + 3d)@50/60Hz | 0-600V, 0-400A, PF 0-1 | |
| DC Power | 40kW | 10W | 1.5% + 3d) | 0-250V, 0-400A |
| 240kW | 100W | 1.5% + 3d) | 0-600V, 0-400A | |
| AC Current | 400A | 0.1A | 1.5% + 3d)@50/60Hz | Overload protection: 600A AC (AC frequency range 40Hz-1kHz) |
| DC Current | 400A | 0.1A | 1.5% + 3d) | Overload protection: 600A DC |
| AC Voltage | 600V | 1V | 1.5% + 2d)@50/60Hz | Overload protection: 800V AC |
| DC Voltage | 400V | 0.1V | 1.0% + 2d) | Overload protection: 800V DC |
| Frequency | 10kHz | 0.01-100Hz | 0.8% + 2d) | Overload protection: 600V AC |
| Dimensions | 7.2 x 2.5 x 1.4" (183 x 64 x 36mm) | |||
| Weight | 6.7oz (190g including batteries) | |||
