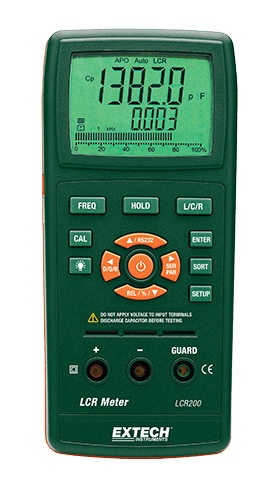

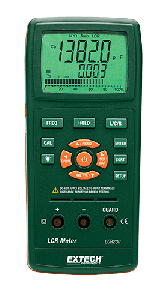

Extech LCR200 Passive Component LCR Meter
The LCR200 is a passive component LCR meter. Discover the tremendous value with a range of features that help this meter provide the precise measurements you need. See simultaneous 20,000/2,000 count display of the primary parameter on the high contrast backlit display. You can set Hi/Lo limits using absolute values or percentages. Open and Short Zero removes unwanted stray impedances from the measurement. Use the built-in test fixture or external test leads (included). The LCR200 has an Auto Power Off function that can also be disabled and a low battery indicator to alert you when to replace the batteries. Complete with test leads and 9V battery.
| Specifications | Range | Basic Accuracy |
|---|---|---|
| Inductance | 20H, 200H, 2000.0H, 20.0000mH, 200.00mH | 0.5%rdg + 5 digits) |
| 2000.0H, 20.000H, 200.00H, 2000.0H | (DF <0.1) | |
| Capacitance | 20pF, 200pF, 2000pF, 20.000nF, 200.00nF, 2000.0nF | 0.5%rdg + 5 digits) |
| 20.000F, 200.00F, 2.0000mF, 20.00mF | (DF <0.1) | |
| Resistance | 20.00 200.00 2.0000k 20.000k 200.00k 2.0000M 20.000M 200.0M/td> | 0.5%rdg + 5 digits) |
| DF (with C) | 0.000 to 999 | |
| Q | 0.000 to 999 | |
| Phase | 0/td> | |
| Test Frequency | 100Hz/120Hz/1kHz/10kHz/100kHz | |
| Dimensions | 7.6 x 3.5 x 1.6" (193 x 88 x 41mm) | |
| Weight | 14.8oz (420g) | |
