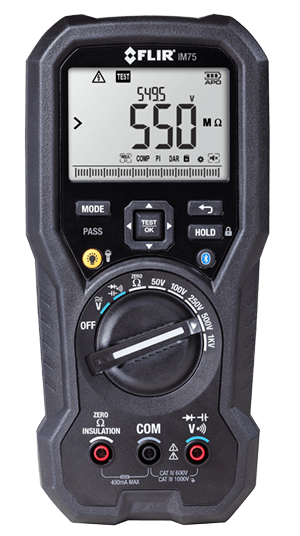

Flir IM75 Multifunction Digital Multimeter & Insulation Tester with METERLiNK
The FLIR IM75 is both an advanced multifunction digital multimeter and premier handheld insulation tester for installation, troubleshooting and maintenance professionals. The IM75 includes several specialty insulation modes including: Polarization Index, Dielectric Absorption and Earth Bond Resistance. Insulation tests can be performed instantly, continuously and over a timed duration for in-depth assessment.
| Technical Summary | Max Range | Basic Accuracy |
| Insulation Resistance | 4M to 20G | 1.5% |
| Insulation Test Voltages | 50, 100, 250, 500 and 1000V | 3.0% |
| DC Voltage | 1000.0V | 0.1% |
| AC Voltage | 1000.0 V | 1.5% |
| VFD AC Voltage | 1000.0V | 1.5% |
| Earth Bond Resistance | 40 to 40K | 1.5% |
| Capacitance | 10 mF | 1.2% |
| Frequency (ACV) | 40kHz | +/- 5 digits |
| Diode Test | 2V | 0.5% |
| Continuity | 400.0 | 0.5% |
