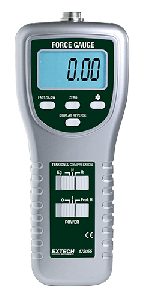

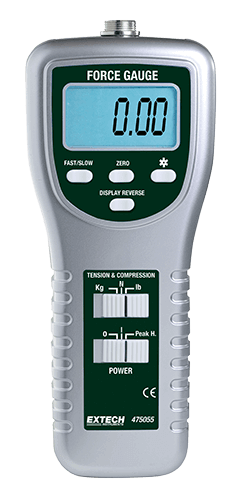

Extech 475055 High Capacity Force Gauge
475055 is a High Capacity Force Gauge. Measuring ranges from 0.05 to 100-kilograms, 0.05 to 220-pounds, 0.2 to 980 Newton. Basic accuracy of 0.5-percent. Tension or Compression, Peak hold and Zero functions. Positive/Reverse display for easy readability. Large LCD with back light feature. Complete with tension and compression adaptors, 6 AA batteries and case.
| Specifications | Range |
|---|---|
| Measurement Range | 220 lbs, 100kg, 980 Newtons |
| Basic Accuracy (23) | 0.5%rdg) |
| Resolution | 0.05lbs, 0.05kg, 0.2 Newtons |
| Overload capacity | 150kg |
| Update Rate | Fast mode 0.2 seconds; Slow mode 0.6 seconds |
| Full scale deflection | <1mm |
| Transducer type | Load cell |
| Dimensions/ Weight | Meter: 8.5 x 3.5 x 1.8" (215 x 90 x 45 mm)/ 1 lb (450g) |
