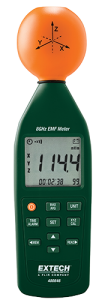

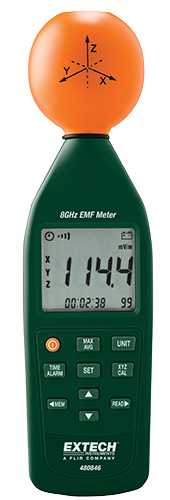

Extech 480846 8GHz RF Electromagnetic Field Strength Meter
This 480846 RF EMF Strength Meter monitors high frequency radiation in the 10MHz to 8GHz range. Ideal for mobile phones, cell phones, base stations, locating RF hotspots, wireless network (Wi-Fi) RF detection, RF "Electrosmog" detection, microwave leakage, and wireless communication applications (CW, TDMA, GSM, DECT). Meter features non-directional measurement with 3-channel (triaxial) measurement probe, Max Hold and Average functions, and manual store/recall of up to 99 data sets. In addition, there is an audible alarm with a user-selectable threshold. The meter comes complete with a 9V battery and carrying case.
| Specifications | Range |
|---|---|
| Sensor Type | Electric Field |
| Frequency Range | 10MHz to 8GHz (optimized for 900MHz, 1800MHz, 2.7GHz, 3.5GHz & 8GHz) |
| Units of Measure | mV/m, V/m, A/m, mA/m, W/m2 , mW/m2 , W/m2 , W/cm2 , mW/cm2 |
| Measuring Ranges | 20mV/m to 108.0V/m |
| 53A/m to 286.4mA/m | |
| 1W/m2 to 30.93W/m2 | |
| 0W/cm2 to 3.093mW/cm2 | |
| Resolution | 0.1mV/m, 0.1A/m, 0.1W/m2 , 0.001W/cm2 |
| Audible Alarm | Adjustable threshold with On/Off |
| Memory | Manual store/recall of 99 sets |
| Dimensions | 2.6x2.4x9.7" (67x60x247xmm) |
| Weight | 8.8oz (250g) |
