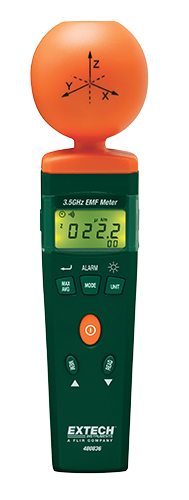

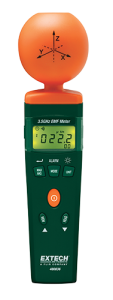

Extech 480836 RF EMF Strength Meter
This RF EMF Strength Meter monitors high frequency radiation in the 50MHz to 3.5GHz range. Ideal for mobile phones, cell phones, base stations, locating RF hotspots, wireless network (Wi-Fi) RF detection, RF"Electrosmog" detection, and microwave leakage. It features non-directional measurement with 3-channel (triaxial) measurement probe, Max Hold and Average functions, and manual store/recall of up to 99 data sets. In addition, there is an audible alarm with a user-selectable threshold. The meter comes complete with a 9V battery and carrying case.
| Specifications | Range |
|---|---|
| Sensor Type | Electric Field |
| Frequency Range | 50MHz to 3.5GHz (Measurement optimized for 900MHz, 1800MHz and 2.7GHz) |
| Units of Measure | mV/m, V/m, A/m, mA/m, W/m2 , mW/m2 , W/m2 , W/cm2 , mW/cm2 |
| Measuring Ranges | 20mV/m to 108.0V/m |
| 53A/m to 286.4mA/m | |
| 1W/m2 to 30.93W/m2 | |
| 0W/cm2 to 3.093mW/cm2 | |
| Resolution | 0.1mVm, 0.1mA/m, 0.1mW/m2 , 0.001mW/cm2 |
| Audible Alarm | Adjustable threshold with On/Off |
| Memory | Manual store/recall of 99 sets |
| Dimensions | 9.3 x 2.4 x 2.4" (237 x 60 x 60mm) |
| Weight | 7oz (200g) |
