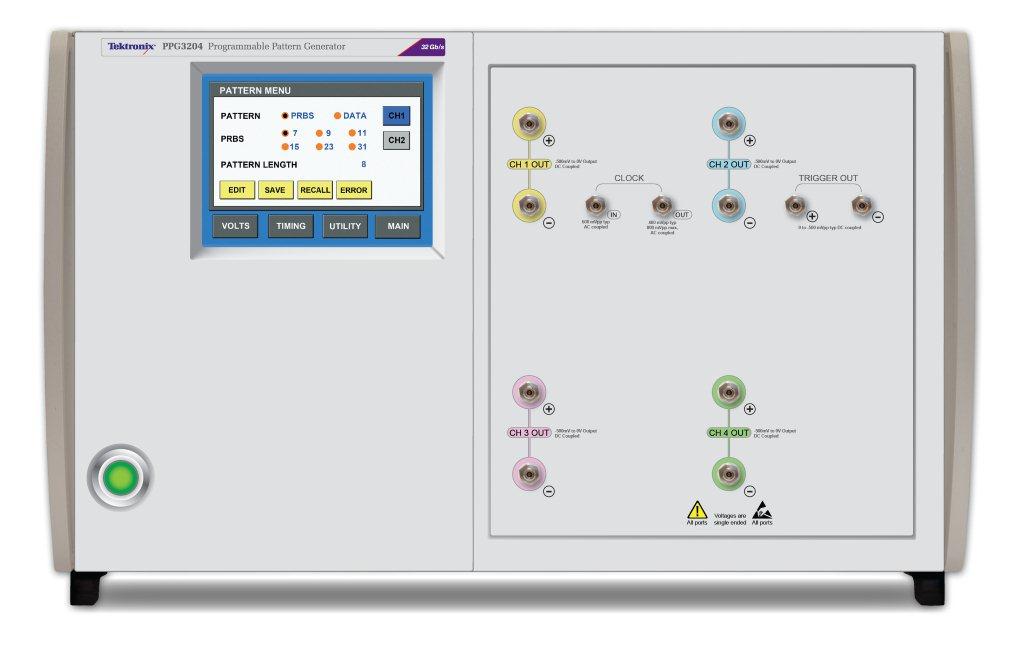

The Tektronix PPG line of high-performance pattern generators offer multi-channel configurations capable of data rates up to 40 Gb/s. With optional jitter insertion, the PPG line offers a flexible, cost effective and easy to use test solution supporting high speed applications such as 100 Gigabit Ethernet, DP-QPSK testing, multi-level (PAM) signaling and a broad range of receiver test applications. Create a full 40 Gb/s BERT system when combined with the Tektronix PatternProPED Series Error Detector.
Features | Benefits |
| Pattern Generation on up to four pattern-independent channels. | Supports multi-lane standards such as 100 GbE. Create victim/aggressor patterns for crosstalk testing. Multi-level signaling testing and parallel testing can reduce rest time over serial pattern generation solutions. |
| 30, 32, and 40 Gb/s data rate Pattern Generation configurations. | Provides the speed to address fast growing markets such as 100 GbE, CEI, 32G Fibre Channel and DP-QPSK. |
| Built-in sine, random, BUJ and PJ jitter insertion capability. |
