Tektronix DataVu-PC Record Analysis Software for Real-Time Spectrum Analyzers
When combined with the signal recording capabilities of all Tektronix USB and PCIe-based spectrum analyzers, DataVu-PC can turn hours of attended monitoring into fast post-acquisition search, mark, and measurement tasks. Analyze your results without adding the extra step of conversion software.
- Search based on signal amplitude characteristics, marking each event occurence for later examination
- Make an unlimited number of Scalar pulse measurements with the eMarker application and export the results in Pulse Descriptor Word format for integration into other workflows.
- Export results to in-depth analysis packages like SignalVu-PC from within DataVu-PC without any additional conversion software.
Features | Benefits |
| Licenses available according to the bandwidth of the captured signal. | Minimizes cost of recording solutions by using files from all Tektronix recording solutions (RSA300 / RSA500 / RSA600 / RSA7100 Series). |

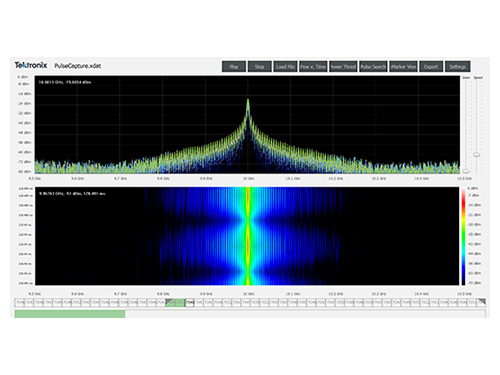

| Color-graded Spectrogram | Minimizes time to intercept with real time spectrograms. Ease transient and co-channel interference finding. |
| Color-graded spectrum density display | Visualizes infrequent signal occurrences and displays time and frequency relationships, reducing analysis time |
| FFT overlap and speed control | Optimizes between highest probability of intercept vs. analysis time |
| Power vs. time display | Provides streaming zero-span display for detailed pulse analysis |
| Export areas of interest to .XDAT, SIQ, and .TIQ formats | Enables analysis with specialized tools including SignalVu-PC, minimizing time to solution |
| File progress bar | Gives analysis position at a glance, with visual display of marker events |
| User settable sliders for start/stop point | Saves time in re-examination of signals of interest |
| Time Overview display | Provides a time domain view of the entire record in one picture. Zoom and reanalyze in other domains for fast data reduction |
| eMarkers | Stores search, analysis, hardware trigger and other information in exportable tabular format |
| Pulse analysis | Calculates start/stop time, average/peak power, pulse width and PRI in PDW format on an unlimited number of pulses, reducing the need for other analysis tools |
