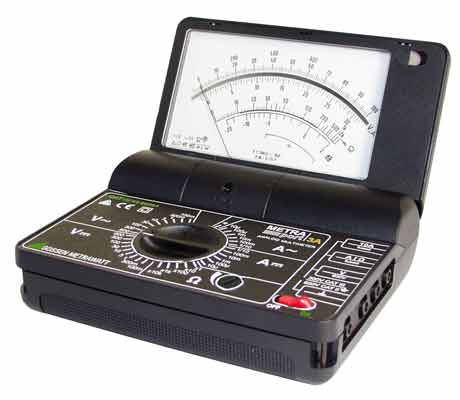

Gossen Metrawatt METRAport 3A Folding Analog Multimeter
Universal folding multimeter with analog display and 52 measuring ranges for use in process engineering, electronics and electrical engineering, the testing laboratory, R&D, service and training in accordance with EN 31010-1 / VDE 0411 part 1.
- For the measurement of voltage, current, resistance and level
- With mirror-backed scale, accuracy class 1.5
- 10 M Ohm internal resistance for load-free voltage measurement
- Automatic battery shut-down when instrument is folded together
- Scale can be tilted with folding lid which also provides protection during transport
- 250 V~ overload protection in all ranges (except 10 A range)
- Voltage measurement: direct and alternating voltage
100 mV, 300 mV, 1 V, 3 V, 30 V, 100 V, 300 V and 600 V - Level measurement: in 9 measuring ranges from -40 dB to +62 dB
- Current measurement: direct and alternating current in 7 measuring ranges for 10 A, 100 A, 1 mA, 10 mA, 100 mA, 1 A and 10 A
- Resistance measurement: 5 measuring ranges
1 ohm to 2 k ohm, 10 ohm to 20 k ohm, 100 ohm to 200 k ohm,
1k ohm to 2 M ohm, 10 k ohm to 20 M ohm - Power supply: 9 V battery per IEC6F2 (commercially available) with 1000 h service life
- Standard equipment: measuring instrument, cable set, battery and operating instructions
- Recommended accessories: FF1.6 fuse link / 700 V, FF16 / 600 V
